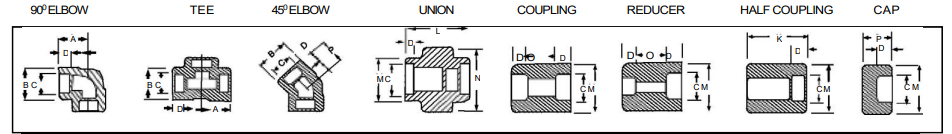

Forged Fitting Dimensions and Specifications

NOM BORE PIPE O.D. A B C G H K D E F I J L
1/8" 10.3 25 25 19 32 22 - 11 10 40 - 6 -
1/4" 13.7 29 33 22 35 25 27 16 11 43 3 6 32
3/8" 17.2 33 38 25 38 32 27 17.5 13 48 4 8 38
1/2" 21.3 38 46 29 48 38 33 22 15 51 5 8 46
3/4" 26.7 44 56 33 51 44 38 27 16 57 6 10 51
1" 33.4 51 62 35 60 57 43 35 19 64 6 10 60
1 1/4" 42.2 60 75 43 67 64 46 44.5 21 70 7 14 72
1 1/2" 48.3 64 84 44 79 76 48 51 21 79 8 16 80
2" 60.3 83 102 52 86 92 51 63.5 22 88 9 17 94
2 1/2" 73.02 95 121 64 92 108 64 76 27 118 10 21 122
3" 89.0 106 146 79 108 127 68 89 29 121 10 65 140
4" 114.5 114 152 79 121 159 75 117.5 32 150 13 25 180
